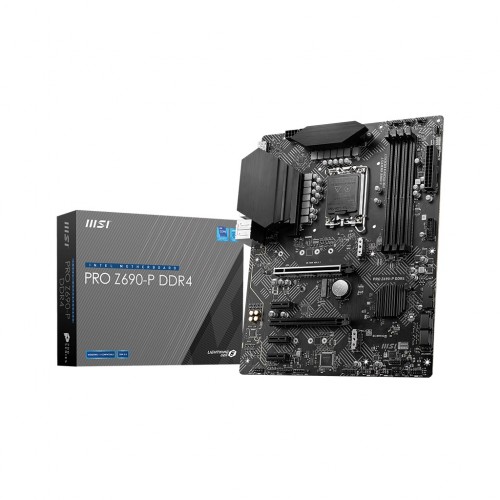

MSI PRO Z690-P DDR4 Motherboard

৳ 24800


Brand :


MSI PRO Z690-P DDR4 Motherboard The MSI PRO Z690-P DDR4 motherboard is designed to accommodate 12th generation Intel processors on socket LGA 1700. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a high-end PC with high performance. It also supports DDR4 RAM, PCI-Express 5.0 16x graphics cards, SATA 6 Gb/s and M.2 PCIe 4. 0 drives, and USB 3.1 and USB 3.2 devices . With MSI's high quality manufacturing and many of the brand's own utilities, it represents a long-term investment. Dominating the relatively bare PCB, the MSI Pro Z690-P DDR4 has one full-length PCIe 5.0 x16 slot, with one full-length PCIe 3.0 x4 slot, and three PCIe 3.0 x1 slots. Storage options are an obvious sacrifice on this model compared to other Z690 boards, with two PCIe 4.0 x4 M.2 slots, four SATA ports with support for RAID 0, 1, 5, and 10 arrays, as well as one M.2 2230 Key-E slot for users looking to add a wireless CNVi. Located in the top right-hand corner are four memory slots, with support for DDR4-5200 and a combined capacity of up to 128 GB. More Information SKU PRO Z690-P DDR4 Brand MSI Series Pro series Model PRO Z690-P DDR4 CPU Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors CPU (Max Support) Core i9 Chipset Z690 Memory Support 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz Memory Channels 2 Max Memory (GB) Upgradable up to 128 GB PCI-EX16 2 PCI-EX1 3 PCI-E GEN Gen 3, Gen 5 SATA III 4 M.2 SLOT 2 RAID 0/1/5/10 LAN Realtek® RTL8125BG 2.5Gbps LAN controller Bluetooth Bluetooth 5.2 USB 3.2 Ports (Front) 4(Gen 1, Type A) USB 3.2 Ports (Rear) 1(Gen 2x2, Type C), 4(Gen 1, Type A) USB 2.0 Ports (Front) 4 USB 2.0 Ports (Rear) 5 Audio Ports (REAR) Realtek® ALC897 Codec Displayport 1 TPM (Header) 1 HDMI 1 DirectX DirectX 12 Ultimate Crossfire No Dimensions 30.5 cm x 24.4 cm Weight 1.370000 Warranty 3 Years

.....view more
